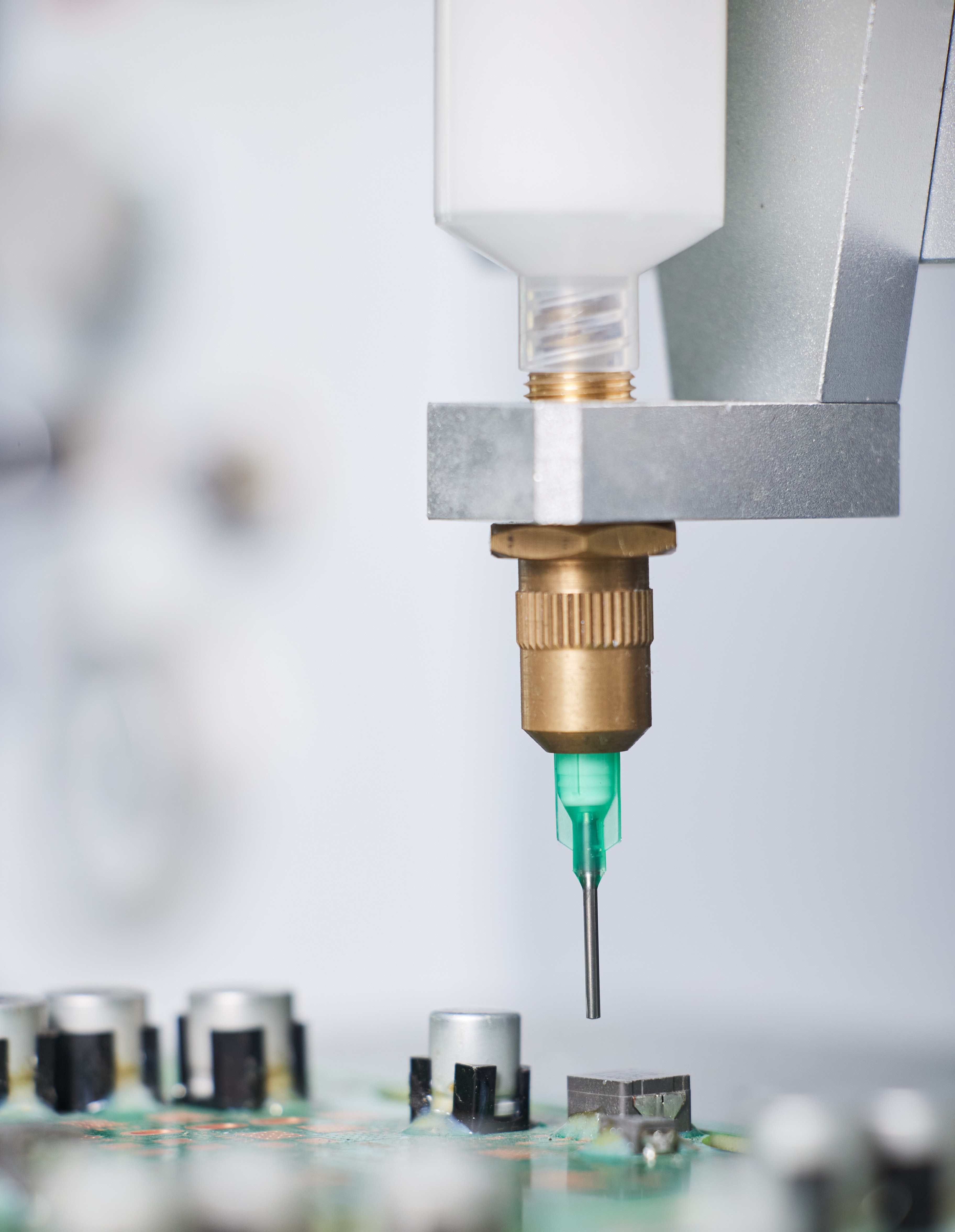

The brass material has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.

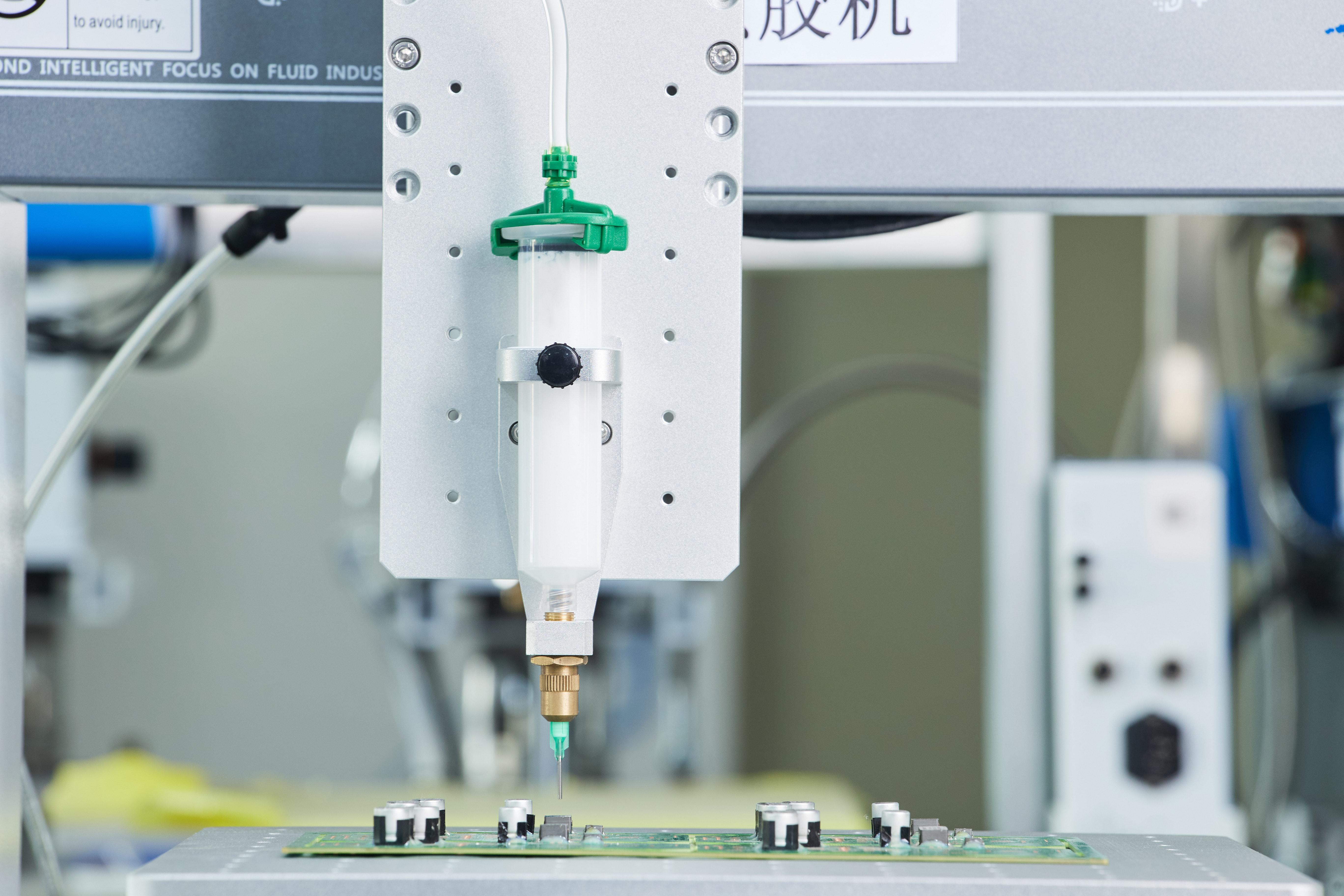

Suitable for 5cc, 30cc, 50cc syringe packaging glue, convenient and easy to replace.
Lighter in weight, saves the use of screws, and the structure is more stable and durable.

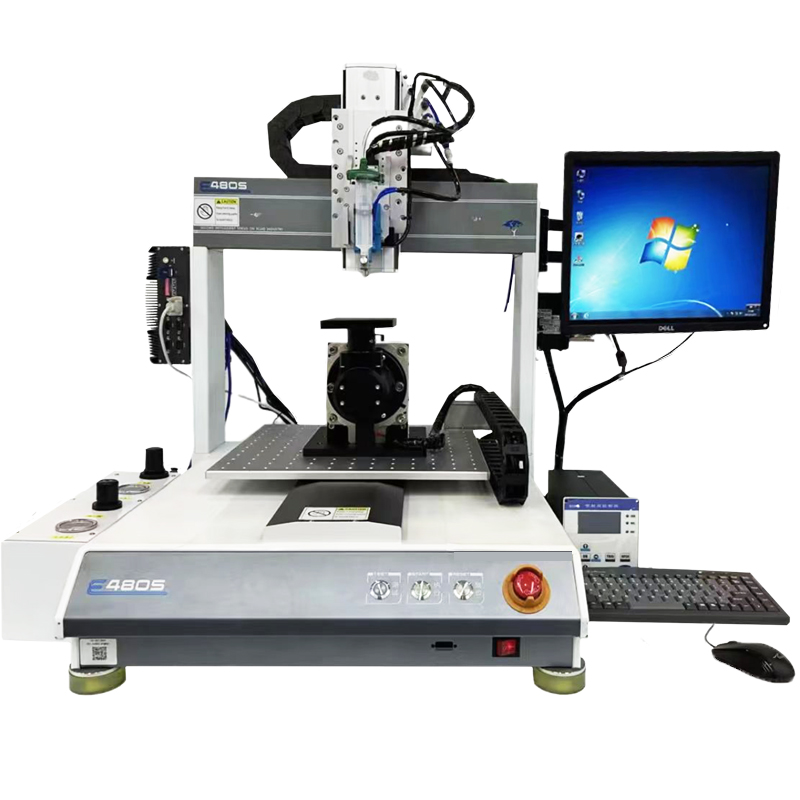

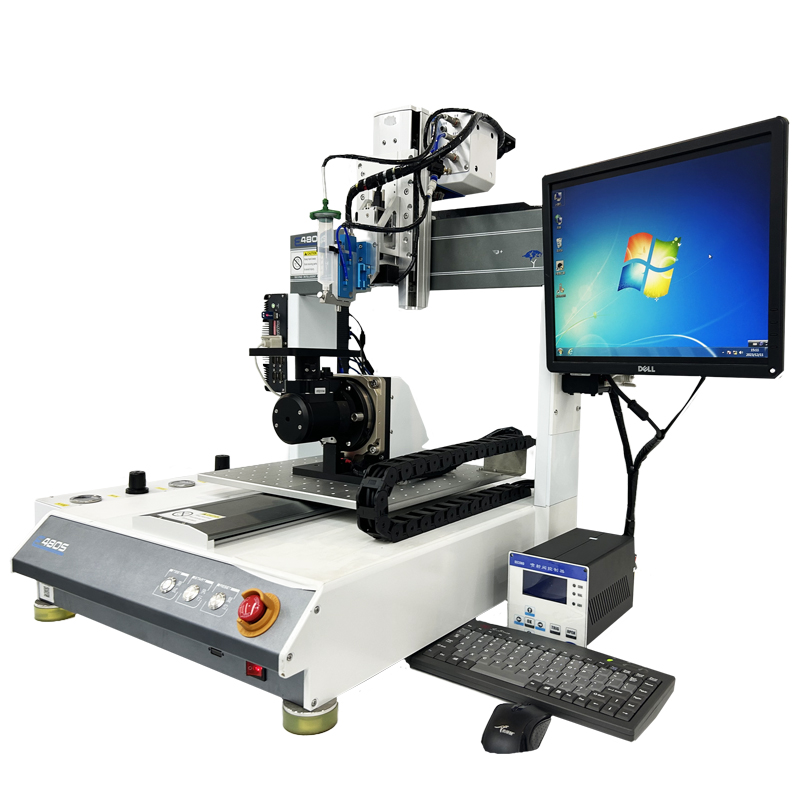

PC control with CCD industrial camera, more accurate positioning and easy to programming, user-friendly self-developed dispensing software.

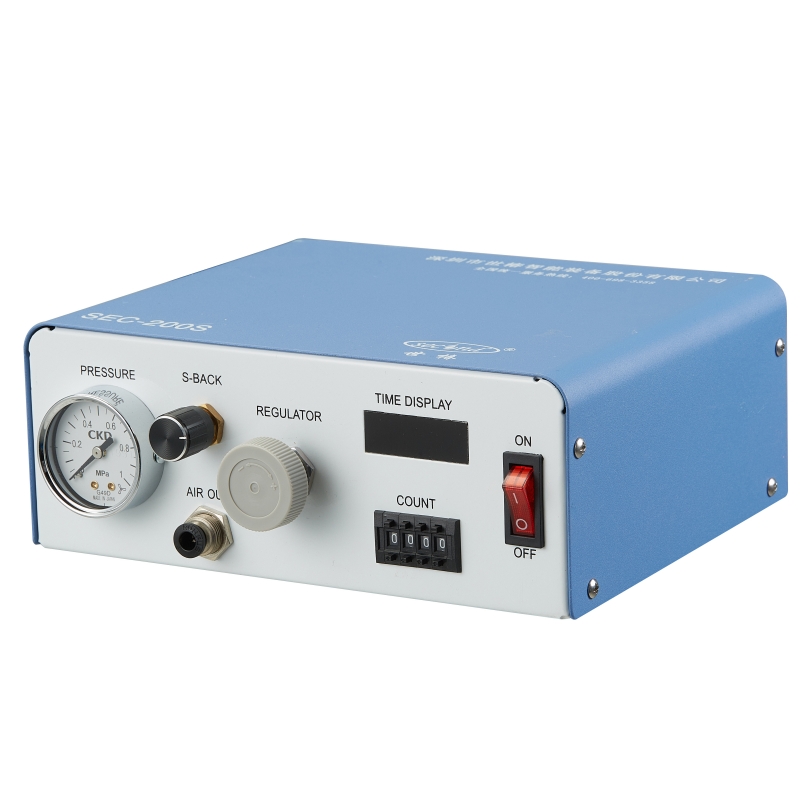

Precisely control the size of the air pressure to ensure the stability of the amount of glue.

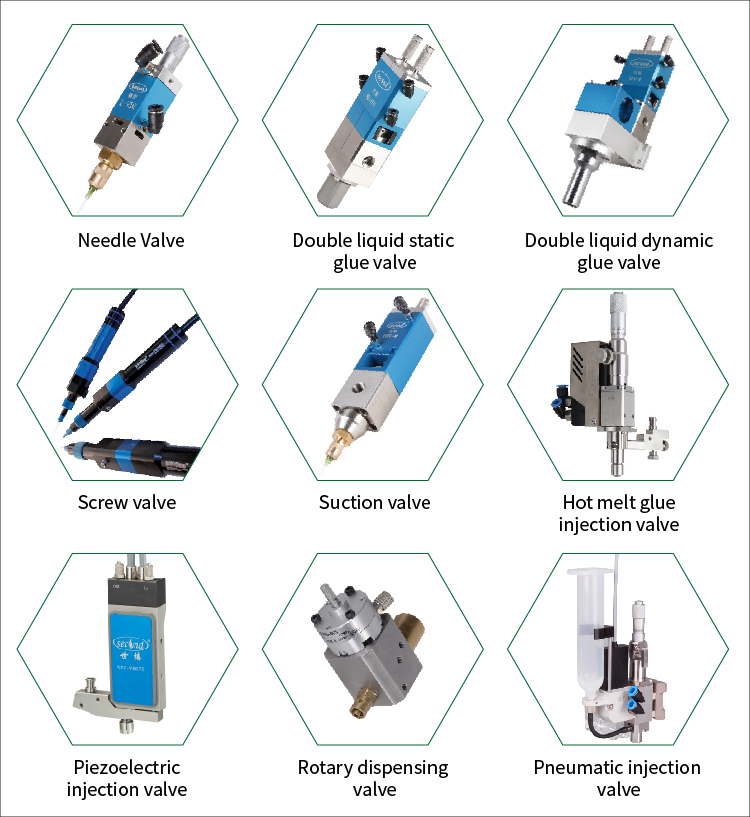

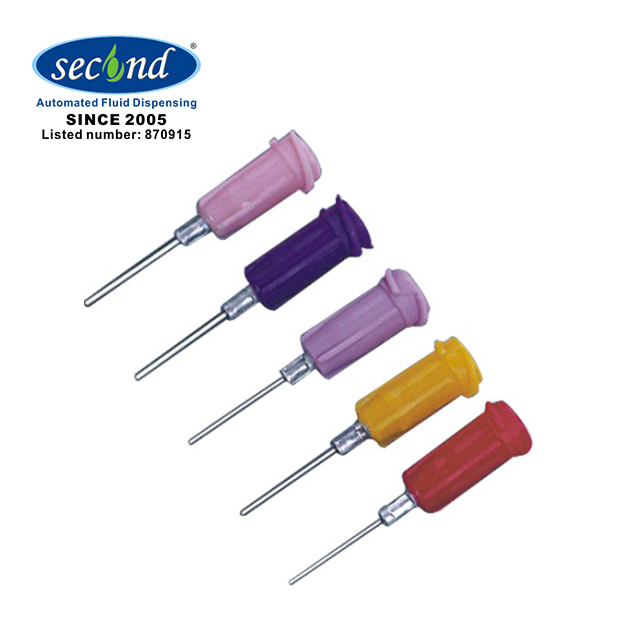

Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.

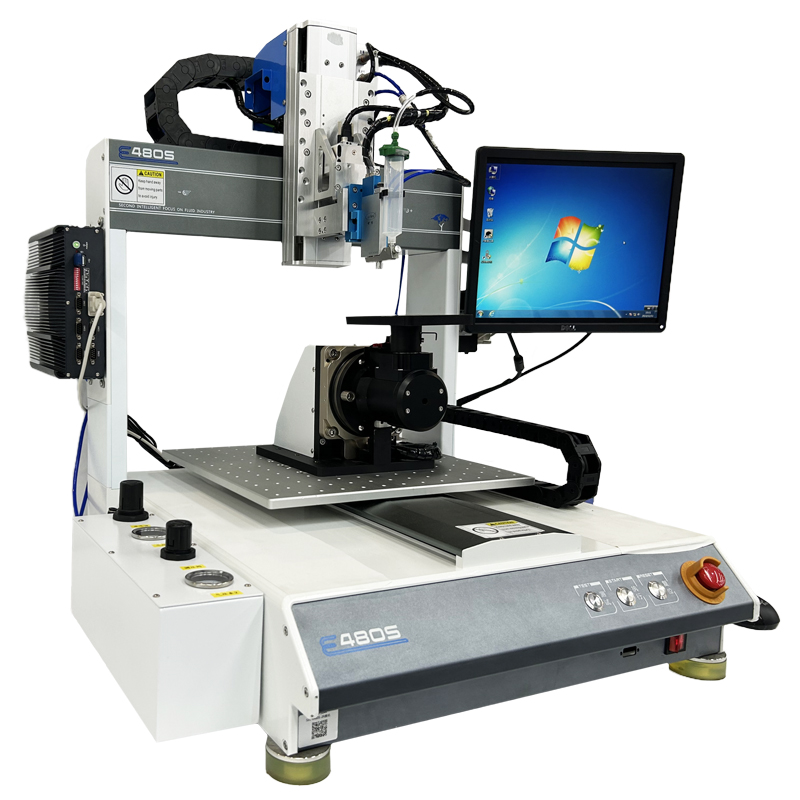

| Model | SEC-E380SV | SEC-E480SV | SEC-E580SV |
|---|---|---|---|
| Working range | 380(X)*380(Y)*100(Z)mm | 480(X)*480(Y)*100(Z)mm | 580(X)*480(Y)*100(Z)mm |
| Max payload | 20kg(Y)/15kg(Z) | ||
| Max travel speed | 500mm/sec(XY)/200mm/sec(Z) | ||
| Driven mode | Servo motor, Ball-screw | ||
| XYZ position accuracy | ±0.015mm | ||
| Resolution | 0.01 | ||
| Memory storage | 120G | ||
| Operating method | Windows | ||
| Movement patterns | 3 axis spot to spot, continue line, arc | ||
| I/O | 1 input, 4 output(support expansion) | ||
| Power supply | AC 220V 50/60 Hz 1 KW | ||
| Working environment | Temperature 0~40℃，Humidity 20%~90% | ||
| Weight | Approx 48kg | Approx 60kg | Approx 75kg |
| Machine dimension | 520*583*645mm | 620*683*645mm | 720*783*645mm |
Our machines are sold all over the world, and we have cooperated with 52 countries so far. We have a professional overseas sales team and after-sales service.
